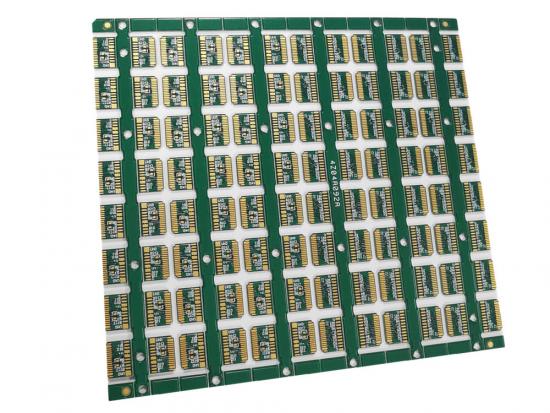

产品规格:
- 板材: FR4 无卤素
- 层数: 4层
- 板厚: 0.75mm
- 完成铜厚: 2.0 oz
- 表面处理: 沉金 2U''
- 应用: 通讯, 连接线
|
Type of base laminate |
FR-4（Tg135,Tg140,Tg170,Tg180), Halogen-free, High CTI, Aluminum, CEM-1, 94V0, PTFE |
|
Spec. of base laminate |
41"*49"（1041*1245mm） 37"*49"（940*1245mm） 43"*49"（1092*1245mm) 86"*49" (2184*1245mm) |
|
Spec. of prepreg |
1080 RC63%/RC65%/RC67% 2116 RC50%/RC53%/RC55%/RC57% 7628 RC43%/RC45%/RC48%/RC50% 1506 RC43%/45%/RC48% 2213 RC58% |

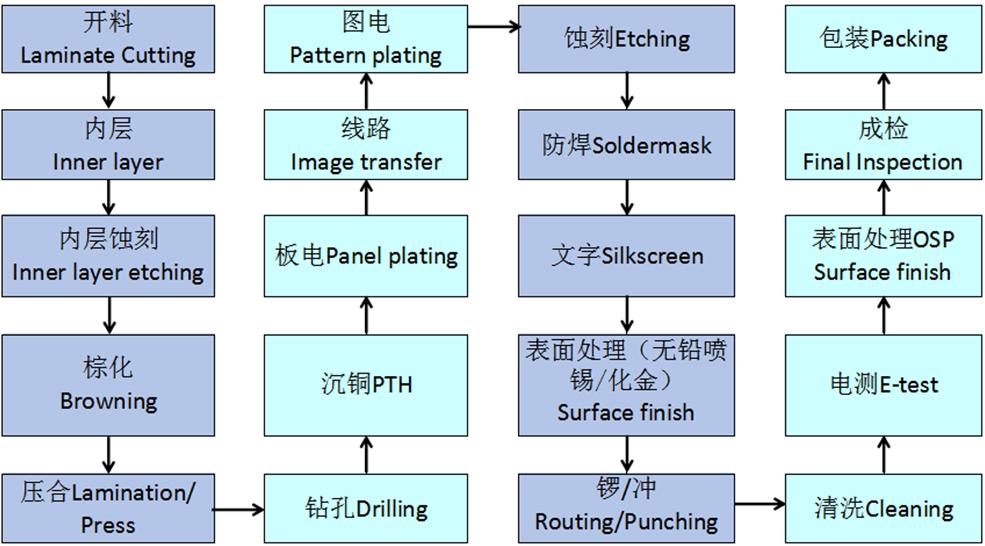

电路板制作流程图:
